As the seasons change and weather patterns fluctuate, the importance of a robust gutter system becomes increasingly evident in preserving the structural integrity and longevity of buildings. At National Timber Buildings, we understand the pivotal role box gutters play in the protection and maintenance of structures, particularly in stable and timber constructions. In this blog, we investigate box gutters, clarifying their purpose, design considerations, and the crucial role they play in safeguarding your timber investments against the elements.

What is a box gutter?

A box gutter is a type of gutter system commonly used in buildings, especially those with flat or low-slope roofs. Unlike traditional gutters that are attached to the edge of the roof, box gutters are built into the roof structure itself. They are typically located at the bottom of a roof slope, concealed within the building’s architecture. A box gutter is boxed between parallel surfaces (two roofs) that feed rainwater into it and directs it towards a downpipe for drainage.

The purpose of a box gutter is to collect rainwater runoff from the roof and direct it to downspouts, drains, or other drainage systems. Box gutters are often made of metal, such as galvanised steel, aluminium, or copper, although they can also be constructed from other materials like PVC or wood.

To facilitate proper drainage from a box gutter, the gutter is installed with a slight slope or gradient, usually towards the downpipe end. This slope allows water to flow along the gutter towards the downpipe, where it can then be carried away from the building and into the drainage system.

Plus, box gutters often feature outlets or openings along their length, strategically placed to allow water to exit the gutter and enter the downpipe. These outlets may be equipped with strainers or grates to prevent debris from clogging the system.

Box gutters are called so because of their rectangular or box-like shape. They are designed to manage large volumes of water efficiently, preventing water damage to the building’s structure by directing runoff away from the roof and foundation. Proper maintenance and regular cleaning are essential to ensure that box gutters remain free of debris and functional.

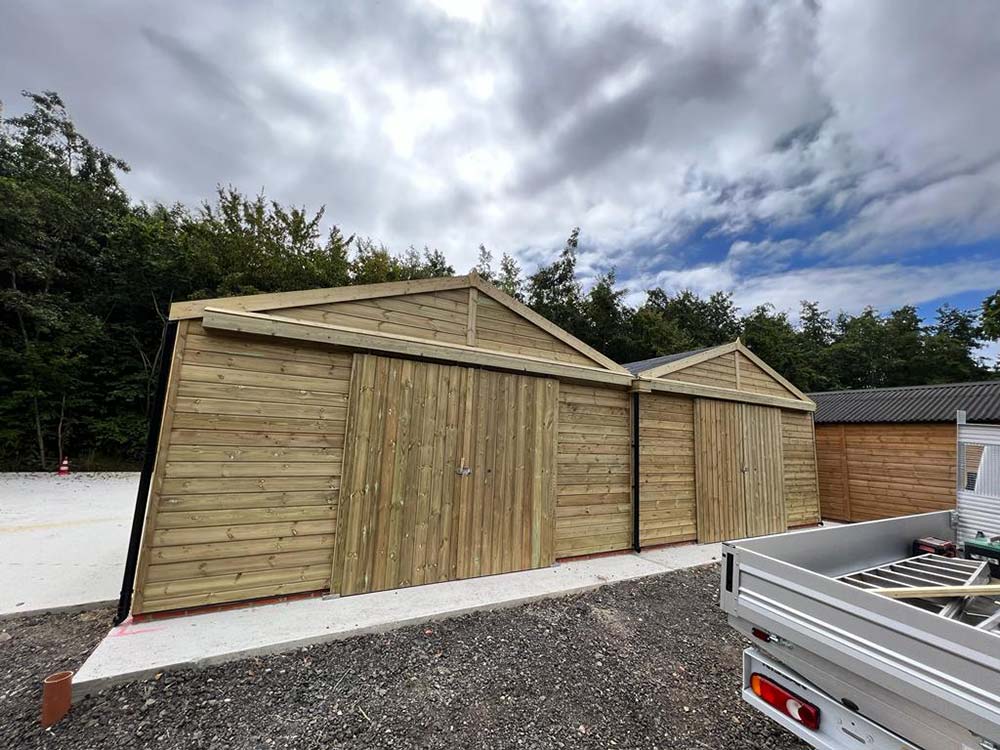

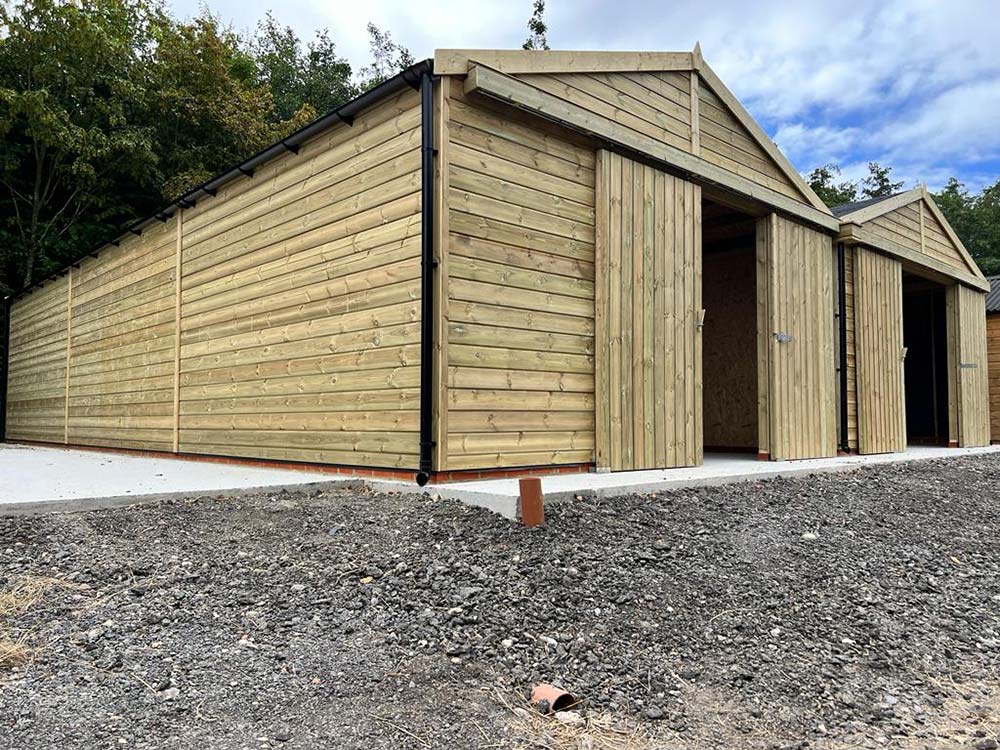

A recent 36 x 40 workshop with box gutter and sliding doors designed, manufactured, and erected by National Timber Buildings.

Why are box gutters a desirable choice for horse stables and other timber structures?

Box gutters are often a smart choice for horse stables and other timber structures for several reasons:

  • Integration with roof structure: Box gutters can be integrated into the roof structure of timber buildings seamlessly, providing a clean and cohesive appearance. This integration helps maintain the aesthetic appeal of the structure while efficiently managing rainwater runoff.
  • Durability: When professionally installed and maintained, box gutters made of durable materials such as galvanised steel or copper can withstand the elements for many years. This durability is especially important for timber structures, which may be more susceptible to water damage if not adequately protected.
  • Capacity: Box gutters typically have a larger capacity than traditional gutters, making them well-suited for structures with large roof areas like horse stables. They can efficiently handle heavy rainfall and prevent overflow, reducing the risk of water pooling on the roof or around the foundation.
  • Customisation: Box gutters can be custom designed to fit the specific requirements of horse stables and other timber structures. They can be tailored to accommodate the unique roof design and layout of the building, ensuring optimal performance and functionality.
  • Minimal maintenance: Once installed, box gutters require minimal maintenance, which can be beneficial for structures like horse stables where regular upkeep may be challenging. Routine inspections and occasional cleaning are typically all that’s needed to keep box gutters in good working condition.


Box gutter design considerations

Whilst box gutters are an excellent choice for stables and other timber buildings, designing box gutters involves several important considerations to ensure proper function and durability. When designing your stable or timber building, our in-house design team will think about:

  • Capacity – the box gutter must be sized appropriately to handle the expected volume of water runoff from the roof during heavy rainstorms. Factors such as roof area, rainfall intensity, and roof pitch need to be considered when calculating the gutter’s capacity.
  • Slope – as mentioned earlier, the gutter should be installed with a proper slope to ensure water flows efficiently towards the downpipe. Typically, a minimum slope of 1% is recommended, but the exact slope may vary depending on factors such as gutter length and roof pitch.
  • Material – box gutters are commonly made from materials like galvanised steel, aluminium, copper, or PVC. The material chosen should be durable, corrosion-resistant, and suitable for the specific environmental conditions of the building site.
  • Support structure – the gutter should be adequately supported along its length to prevent sagging or bowing, especially under the weight of heavy rain or snow accumulation. Support brackets or hangers are typically used to secure the gutter to the building’s structure.
  • Expansion joints – to accommodate thermal expansion and contraction of the gutter material due to temperature variations, expansion joints may be incorporated into the gutter system. These joints allow the gutter to expand and contract without causing damage to the structure.
  • Outlets and downpipes – properly positioned outlets and downpipes are essential for efficient drainage. Outlets should be strategically located to ensure uniform water distribution along the gutter’s length, while downpipes should be sized appropriately to oversee the flow of water from the gutter.
  • Overflow provisions – in the event of heavy rainfall or blockage in the downpipe, overflow provisions such as overflow weirs or secondary overflow outlets may be incorporated into the gutter design to prevent water from backing up and causing damage to the building.
  • Maintenance access – design considerations should also include provisions for easy access to the gutter system for cleaning, inspection, and maintenance purposes. This may involve incorporating access points or removable sections in the gutter assembly.

Overall, box gutters play a crucial role in safeguarding timber investments against the elements by effectively managing rainwater runoff from roofs. Without proper drainage, rainwater can accumulate on roofs and infiltrate timber structures, leading to rot, decay, and structural damage over time. Box gutters channel water away from the roof, preventing it from pooling and penetrating timber components. By efficiently directing water towards downpipes and drainage systems, box gutters help maintain the integrity and longevity of timber investments, ensuring they remain protected from moisture-related deterioration caused by prolonged exposure to rain and other weather elements.

Whether you are looking to add to your existing outbuildings, design your first stable, or add a new timber building to your property, request a brochure and see what we can offer you. Alternatively, give us a call on 01233 740944 to chat things through.
